30ml Glass Bottle Syrup Filling and Capping Machine for Pharmaceutical

Brief Introduction:

IVEN Syrup filling and capping machine is made up of CLQ ultrasonic washing ,RSM drying &sterilizing machine,DGZ  filling & capping machine

IVEN Syrup filling and capping machine can complete following functions of ultrasonic washing ,flushing, (air charging, drying& sterilizing optional) ,filling and capping /screwing.

IVEN Syrup filling and capping machine is Suitable for Syrup and other other small dose solution , and with a labeling machine consisting an ideal production line.


Product Detail

Product Tags

Introduction

IVEN Syrup filling and capping machine
1.IVEN Syrup filling and capping machine is made up of CLQ ultrasonic washing ,RSM drying &sterilizing machine,DGZ  filling & capping machine
2.IVEN Syrup filling and capping machine can complete following functions of ultrasonic washing ,flushing, (air charging, drying& sterilizing optional) ,filling and capping /screwing.
3.IVEN Syrup filling and capping machine is Suitable for Syrup and other other small dose solution , and with a labeling machine consisting an ideal production line.

IVEN Syrup filling and capping machine Process

1

Step 1

Bottle entering station
Ultrasonic bottle-washing machine are used to clear the inside and the outside of the medicinal vials and other cylinder bottles.
IVEN Syrup filling and capping machine new type chain conveyor is used to delivery bottles to dial wheel filling station, with features of low noise, no reverse pollution of clean air. Greatly reduce bottles collapsing ,lacking and breaking.

2
3

Step 2

Dial Wheel Station
The Chain conveyor of IVEN Syrup filling and capping machine is used to delivery bottles to dial wheel filling station, with features of low noise, no reverse pollution of clean air. Greatly reduce bottles collapsing ,lacking and breaking.

Step 3

Filling station
Reciprocated tracking filling system of IVEN Syrup filling and capping machine, with rotary dial wheel, high positioning accuracy, each filling head can be adjusted separatedly ,can achieve the function of no bottle no filling and anti-foaming filling.

4
5

Step 4

Capping station
IVEN Syrup filling and capping machine Optimized CAD design rolling knives angle and rolling head set, with good adaptability to irregular bottles, with easy operation and fast cap collating.

IVEN Syrup filling and capping machine Advantages

Imported variable control program, easy to operate

Filling accuracy, defoaming and not drip

No bottle no filling, no cap no capping

Easy capping design, low bottle breakage rate

Frequency stepless speed regulation

Filling with no pollution, long use life

6

IVEN Syrup filling and capping machine Application

7

Samples show:

Syrup filling and capping machine

Syrup Syrup Filling Line 30 Ml Glass Bottle

Syrup Syrup Filling Line 100 Ml Glass Bottle

Syrup Syrup Filling Line for Pharmaceutical

8

IVEN Syrup filling and capping machine Tech Specs

Name Specification
Over size 2000*1100*2400mm
Total weight 1300kg
Total power 2.5kw
Filling heads 16
Filling accuracy ≤±1%
Capping head 12
Capping qualification ≥99.8%
Percent of damage ≤0.1%

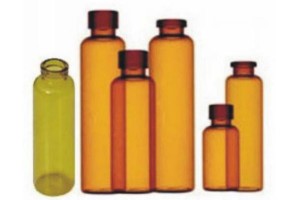

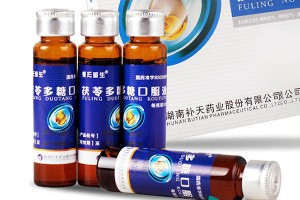

Material & Application

1
3
2
4
