In the relentless battle against infectious diseases, from global pandemics to seasonal outbreaks, the first and most critical line of defense is often the simplest: a single virus sampling tube. This humble vial is the gateway to accurate diagnosis, the starting point for genomic sequencing, and the key to effective public health response. However, behind this simple tool lies a complex manufacturing process where precision, sterility, and scale are non-negotiable. Meeting the monumental demand for these essential devices requires manufacturing solutions that are not just faster, but smarter, more reliable, and impeccably precise. This is where our state-of-the-art Automated Virus Sampling Tube Assembling Line emerges as a game-changer, redefining the standards of production for the diagnostic industry.

The Bedrock of Modern Diagnostics: Why the Sampling Tube Matters

A virus sampling tube is far more than just a container. It typically consists of a tube, a transport medium (designed to preserve viral genetic material), and a secure cap. Its primary function is to safely collect, preserve, and transport a patient sample from the collection site to the laboratory without degradation or contamination. Any flaw in this chain—a leaky tube, an improperly mixed medium, insufficient volume, or microbial contamination—can lead to false negatives, ruined samples, and ultimately, misdiagnosis. The integrity of the entire diagnostic process rests on the quality and consistency of this primary collection device.

Traditional manual assembly methods, while functional for small-scale production, are fraught with challenges when scaled: human error, inconsistent filling volumes, variable capping torque, and significant risks of cross-contamination. Furthermore, manual labor cannot sustainably meet the explosive, unpredictable demand triggered by emerging health crises. The industry needed a paradigm shift towards automation, and our assembling line is the answer.

A Symphony of Precision Engineering: How the Assembling Line Works

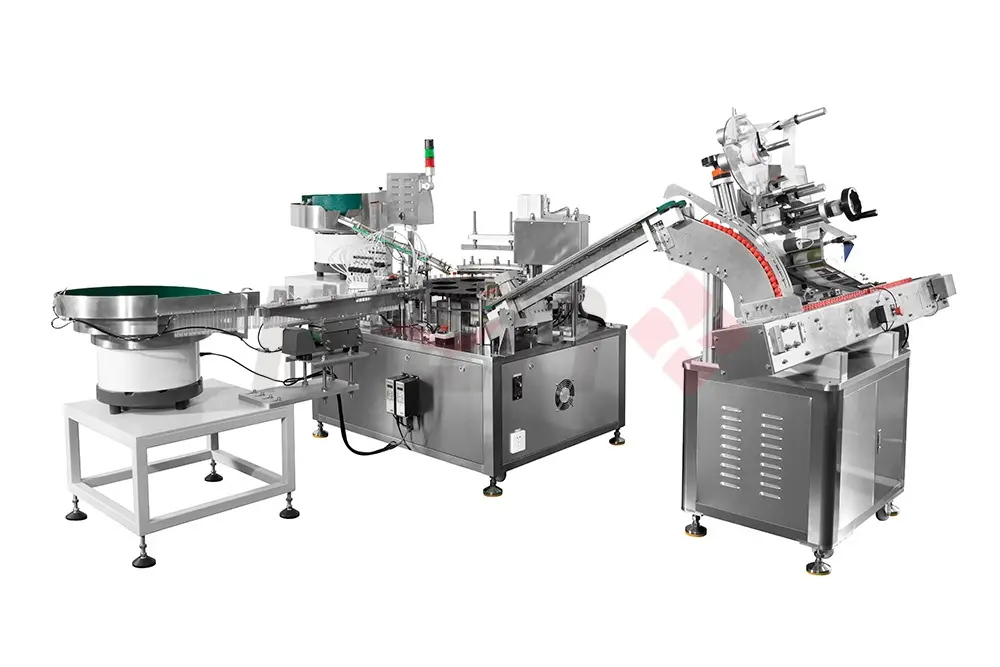

Our Virus Sampling Tube Assembling Line is a marvel of integrated engineering, designed specifically for the high-volume filling of transport medium into virus sampling tubes. It embodies a perfect fusion of mechanical robustness, sensor-based intelligence, and seamless process flow. The operation can be broken down into its core automated stages:

1.Streamlined Manual Loading & Automated Initiation: The process begins with efficient manual loading of empty tubes and caps into designated hoppers, along with the addition of any powdered or liquid additive to the central reagent bottle. This setup minimizes operator intervention, allowing them to manage multiple lines simultaneously. From this point, the line takes over completely.

2.Automatic Tube Feeding: The system automatically orientates and feeds the empty tubes onto a precision conveyor system. This ensures a continuous, orderly flow of tubes into the subsequent filling zone, eliminating bottlenecks.

3.Proactive Tube Missing Detection: Before any reagent is dispensed, an advanced sensor verifies the presence of a tube in each designated slot. This prevents the wasteful and messy scenario of dispensing precious transport medium into thin air, ensuring resource efficiency and maintaining a clean production environment.

4.High-Speed, Precision Dosing: This is the heart of the assembly line. The system features two independent groups of dosing systems, each equipped with five high-accuracy nozzles. This multi-head, multi-group configuration allows for the simultaneous filling of multiple tubes, drastically accelerating production rates. The peristaltic pump technology ensures that the volume dispensed is exceptionally precise and consistent from tube to tube, batch to batch. This eliminates the volume variability inherent in manual pipetting, guaranteeing that every single tube contains the exact amount of medium required for optimal sample preservation.

5.Automated Cap Feeding and Screw Capping: Once filled, the tubes move to the capping station. Caps are automatically fed, oriented, and placed onto the tubes. A sophisticated servo-controlled capping head then applies a precise, pre-programmed torque to screw the cap securely into place. This is crucial for preventing leaks during transportation and maintaining a sterile internal environment.

6.Intelligent In-Place Cap Detection: A critical quality control check occurs immediately after capping. A sensor meticulously verifies that each cap has been screwed down to the correct height and is fully seated. Any tube with a loose, cross-threaded, or missing cap is instantly flagged for rejection.

7.Laser-Based Dosing Volume Verification: In a step that goes beyond standard automation, the line incorporates a non-contact laser sensor to measure the liquid level in every single tube. This final verification provides irrefutable proof that the prescribed volume of medium is present before the product leaves the line. It is the ultimate safeguard against under-filling or over-filling.

8.Automated Rejection and Outfeeding: Tubes that fail either the cap detection or the volume verification are automatically ejected from the line into a rejection bin without halting production. This ensures that only 100% compliant products proceed to the final stage. The accepted tubes are then automatically offloaded and prepared for packaging, completing a seamless, end-to-end manufacturing process.

This comprehensive automation delivers tangible, transformative benefits:

● Exceptional Production Efficiency: The multi-head dosing and continuous motion design enable outputs that are orders of magnitude higher than manual lines, allowing manufacturers to respond swiftly to surges in global demand.
● Uncompromising Quality and Consistency: By removing human variability, every single sampling tube produced is identical. Precise volumes, secure capping, and verified integrity are guaranteed, leading to higher reliability for end-users.

● Enhanced Process Control & Data Integrity: The line provides unparalleled oversight. Production speeds, fill volumes, capping torque, and rejection rates can be monitored in real-time, offering valuable data for process optimization and traceability.

● Significant Labor and Cost Reduction: Automation drastically reduces the reliance on intensive manual labor, leading to lower long-term operational costs, reduced training overhead, and minimized exposure to human-error-related waste.

● Superior Sterility and Contamination Control: The closed-system design of the dosing system and the minimal human contact throughout the process significantly reduce the risk of microbial or particulate contamination, upholding the highest standards of product safety.



By ensuring a reliable, high-quality, and scalable supply of virus sampling tubes, this technology strengthens the very foundation of our public health systems. It allows us to be better prepared, more responsive, and more confident in the tools we use to detect and combat the health threats of today and tomorrow. It is not just an assembly line; it is a commitment to a healthier, safer world.

Contact us today to discover how our automated solution can optimize your production, safeguard your quality, and future-proof your manufacturing capabilities.
